中頻紀錄器 1 通道
紀錄器 x 1 通道 - 1 GHz
紀錄器 x 1 通道 - 1 GHz
AE9000-500 Rugged 160 MHz / 1 GHz Disk Recorder。
詳細介紹
RF 紀錄器 :
The compact, self-contained Avalon AE9000HW-500 SIGINT Disk Recorder is designed to record, reproduce and export
a single channel of wideband analogue IF (intermediate frequency) data at centre frequencies of 1 GHz IF or 160 MHz
IF at pre-defined bandwidths. Depending on the selected IF, recording bandwidths of up to 500 MHz (1 GHz IF) and
100 MHz (160 MHz IF) are supported.
Features:
• Single-/multi-channel analogue IF recorder
• 1GHz & 160MHz IF centre frequencies
• 500 MHz Recording Bandwidth
• 8 and 16-Bit Recording Modes
• Optimised Input Filtering
• 8 TB removable Disk Packs as standard
• Built-in down/up-shifting
• Real-time FFT/waterfall display

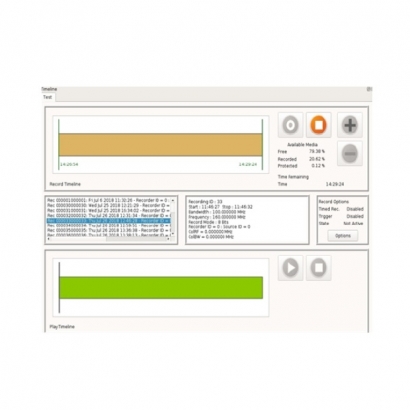

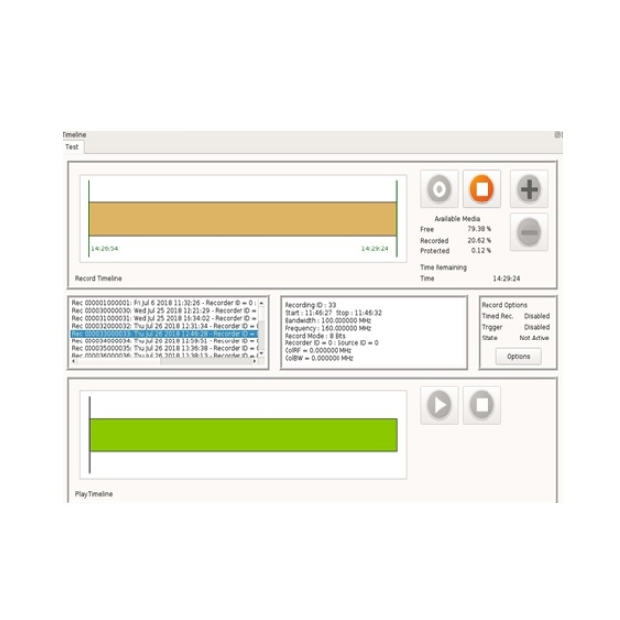

• Intuitive Graphical User Interface
• Data extraction direct to workstation/network
• Community-standard headers supported
• Longer record durations optional
