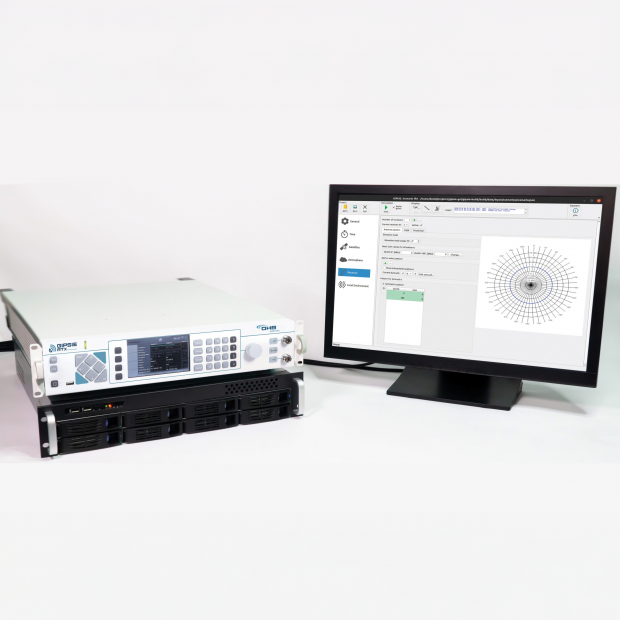

衛星模擬器 - XPLORA Pro
衛星模擬器 - XPLORA Pro
OHB DIGITAL SOLUTIONS - XPLORA
REALTIME GNSS SIMULATOR.
REALTIME GNSS SIMULATOR.
詳細介紹
支援GNSS訊號 :
• GPS: L1 C/A, L2C, L5
• Galileo: E1 B/C, E5a-I/Q, E5b-I/Q
• GLONASS: G1 C/A, G2 C/A
• BeiDou: B1, B2
• SBAS: L1 C/A
• 可依需求客製開發衛星訊號
HIL 更新率 :
• Up to 250 Hz
模擬特色 :
• Satellite orbits based on ephemeris or orbit integration
• Satellite clock model
• Atmospheric delays
• Ionospheric delay models: Klobuchar, Nequick-Gal, IONEX Tec Maps
• Tropospheric delay models: Saastamoinen, Hopfield, GPT2w
• Multipath models (statistical and deterministic)
• Noise models for all delays customizable and highly (bit-true) reproducible
• Antenna gain pattern and obstruction mask
• IF signal parameters including RFFE simulation
• User-configurable navigation message
• Receiver movement simulation (input through GUI, user file or API)
• Simulation of multiple receivers within one simulation
