+ 衛星|慣性模擬
衛星模擬器 - XPLORA One
衛星模擬器 - XPLORA One

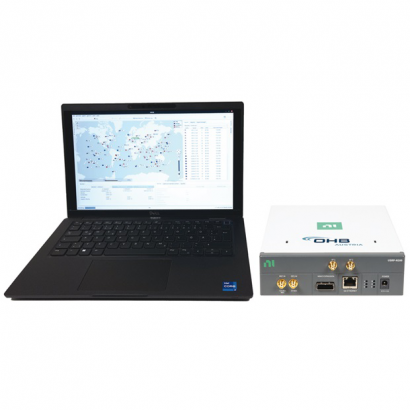

XPLORA One 為經濟款、體積小、重量輕的衛星訊號模擬器。
詳細介紹
支援GNSS訊號 :
• GPS: L1 C/A, L2C, L5
• Galileo: E1 B/C, E5a-I/Q, E5b-I/Q
• GLONASS: G1 C/A, G2 C/A
• BeiDou: B1, B2
• SBAS: L1 C/A
• 可依需求客製開發衛星訊號
特色 :
• Chosen features of XPLORA Core

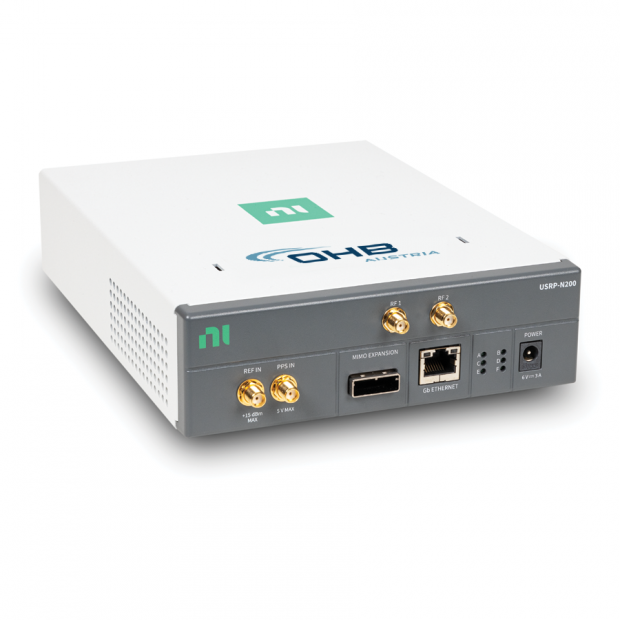

• USRP N200 (1 RF Output) / USRP X300 (2 RF Output)
• Output frequency: 400 to 4.400 MHz
• Reference clock: 2.5 ppm TCXO reference, GPSDO optional
• Resolution: up to 2×16 bit
• RF outputs: up to 2
• Operating system: Ubuntu / Debian
• Power Supply
• Input voltage range: 100 V – 240 V (AC)
• 1 Gigabit Ethernet Cable
• Necessary daughterboard and configuration
• Weight: 1,2 kg (1 RF output) or 1,7 kg (2 RF outputs)
• Maintenance & Premium Support (* conditions applied)
